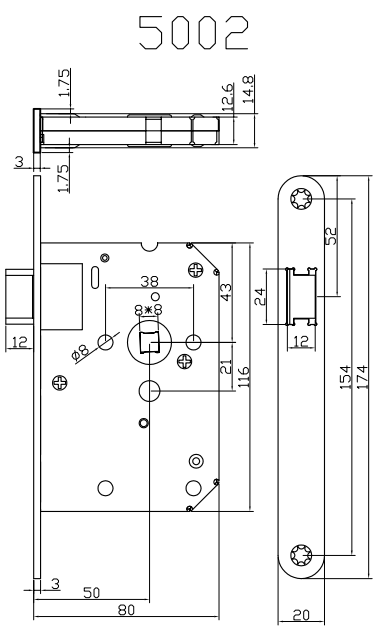

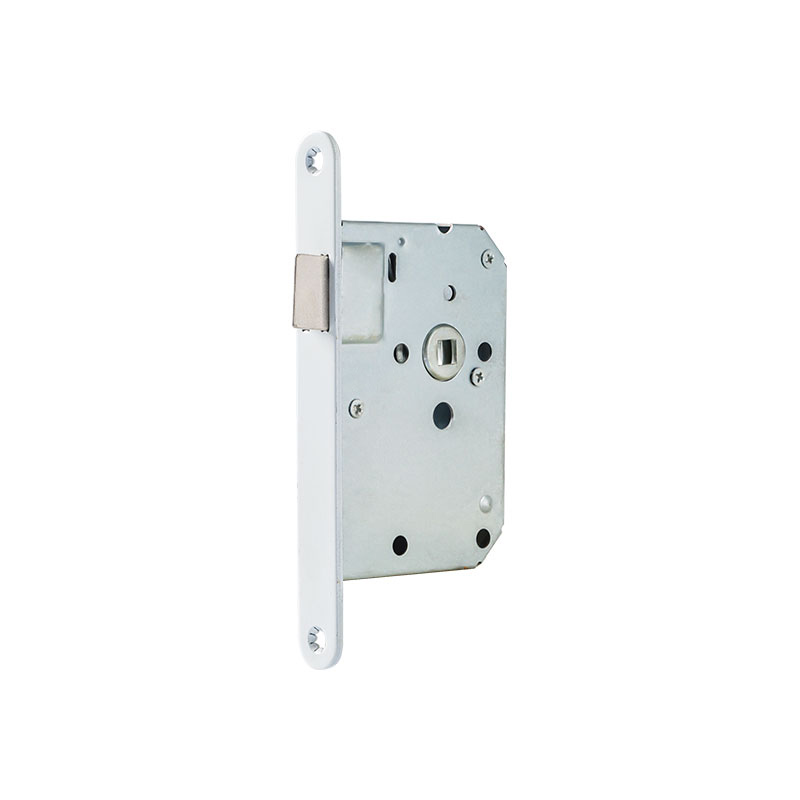

5002 Single Cam Housing

Provided with a liner, an oblique tongue, a reset spring, a bottom box, a slider, a toggle peach and a buffer mechanism; liner is provided on the front side of the bottom box, the bottom box is provided with an oblique tongue cavity, a slider cavity and a toggle peach cavity were placed in the locking tongue, slider and toggle peach, the back end of the locking tongue is connected to the slider, and the back end of the slider and the toggle peach are embedded; reset spring is located at the back end of the oblique tongue; the buffer mechanism is composed of a buffer, a sealing ring, a buffer cavity and damping grease; The buffer cavity is located in the lower part of the slider cavity, the buffer block is provided with a damping shaft embedded in the buffer cavity, the damping grease is also injected into the buffer cavity, and the sealing ring seals the buffer cavity; the buffer block is provided with a buffer friction surface and the friction surface of the front end of the slider to resist pressure and generate sliding friction. The utility model achieves slow and smooth retraction and extension of the lock tongue through the damping force generated by the buffer mechanism, making the door lock open and close more quietly and with a better feel.
